| Sensor Type | Sony 1/2″ CMOS Sensor |
| Scale | 4:3/16:9 Switchable |
| Tv System | PAL/NTSC Switchable |
| Resolution | 1200TVL |
| Lens | 1.7mm |
| FOV | 4:3 WIDE FOV-H: 145° FOV-D:180° |
| 4:3 NARROW FOV-H: 125° FOV-D:160° | |
| 16:9 FOV-H: 145° FOV-D:165° | |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.0001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 5V~16V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 80mA±15% @ DC12V 170mA±15% @ DC5V |

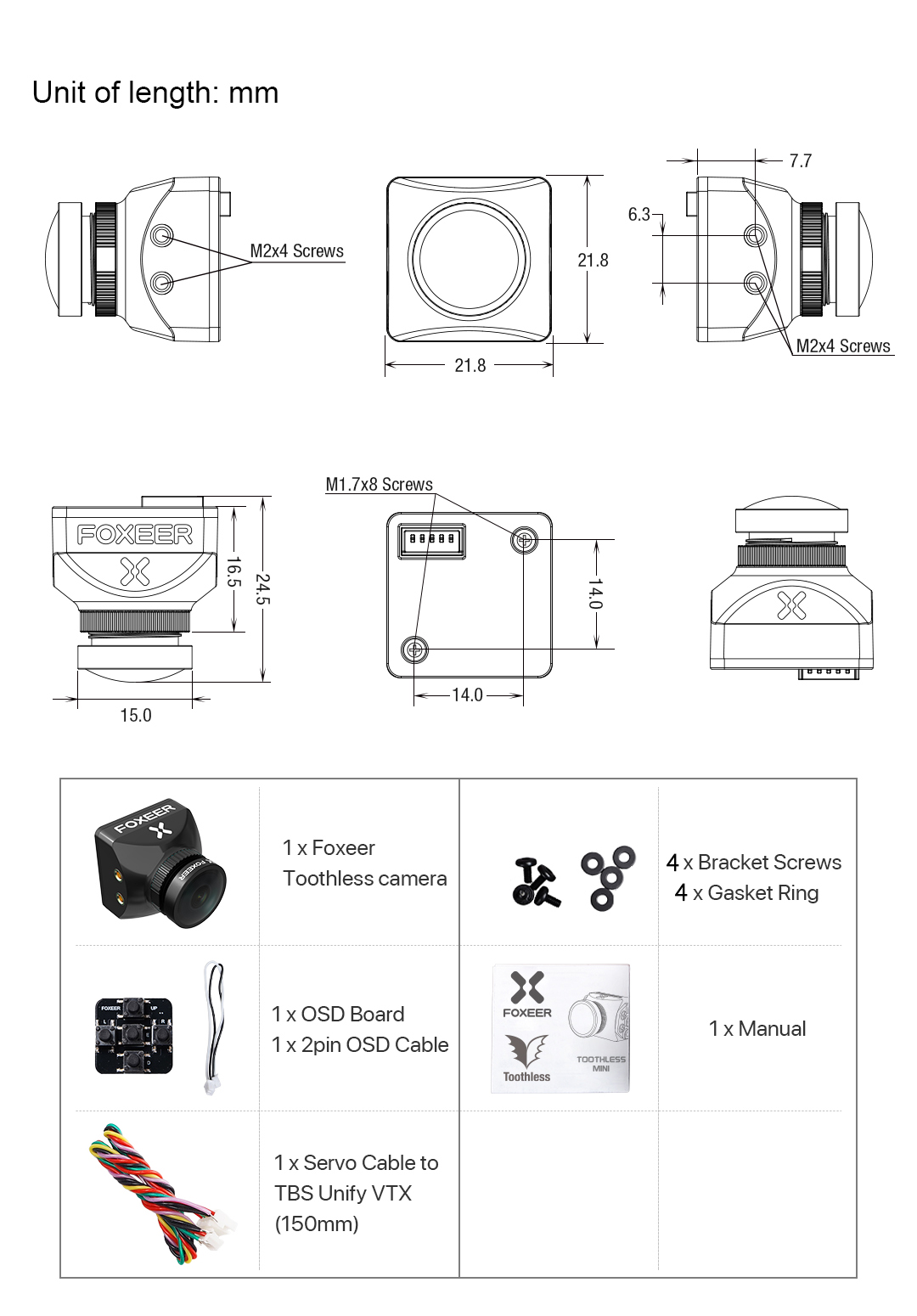

| Dimension | 22*22mm; 28*22(Add Bracket) |
| Weight | 9.7g(Exclude cable) |
