| Sensor Type | Sony 1/3″ CMOS Sensor |
| Scale | 4:3(default)/16:9 Switchable |
| Tv System | PAL(default)/NTSC Switchable |
| Resolution | 1000TVL |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| FOV | 1.8mm: FOV-H:115° FOV-D: 150° |
| 2.5mm: FOV-H:105° FOV-D: 130° | |
| Shutter Speed | Auto |
| Minimum Illumination | 0.01Lux |
| White Balance | Auto |
| DNR | 3DNR 2DNR |
| WDR | Super WDR |
| DAY/NIGHT | Auto/Color/B&W |

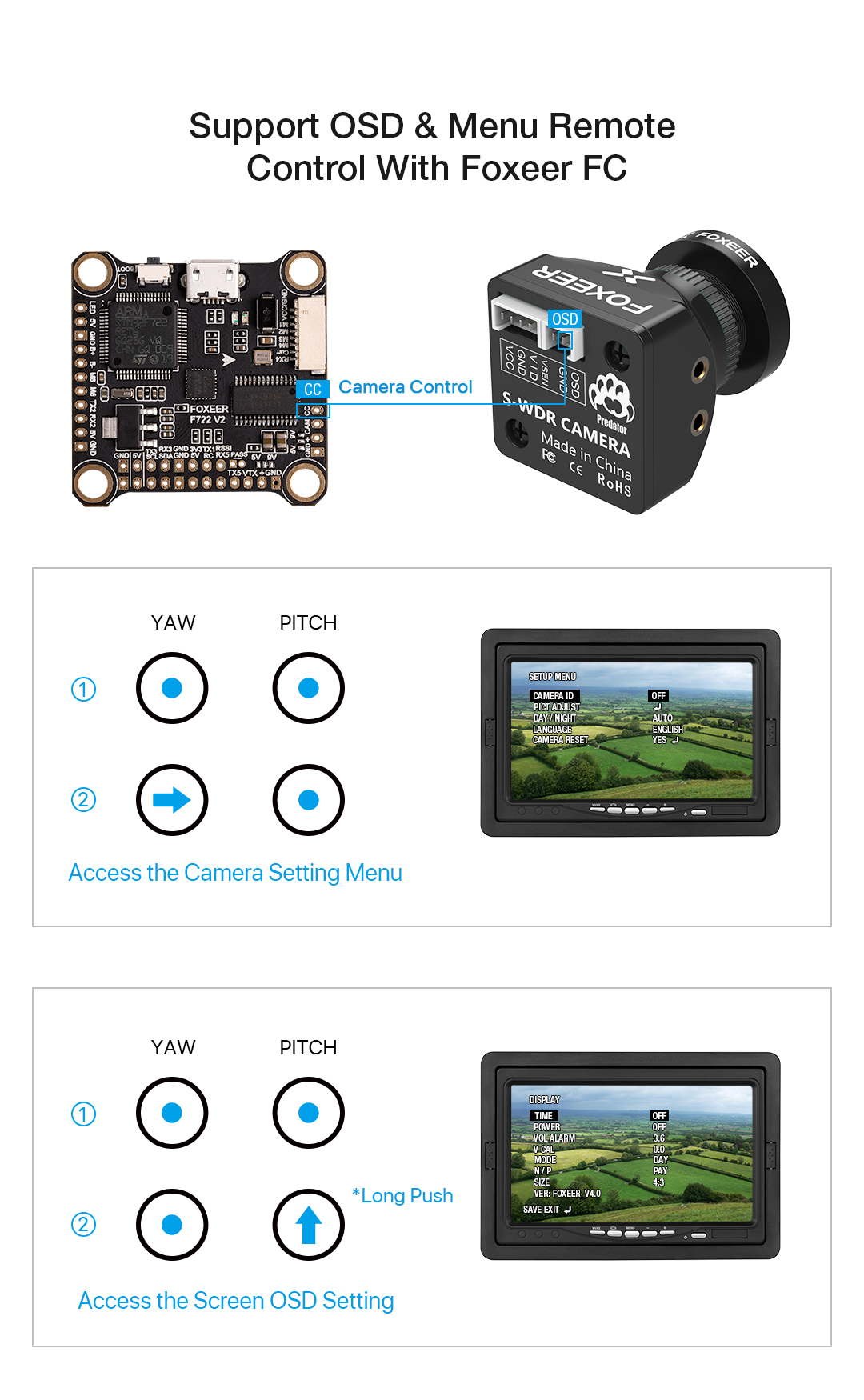

| Flight OSD | Voltage/Cam Title/Time/Cross Hair |
| Flip | Supported |
| Mode | DAY/CLOUDY/Night/LED |
| Fast Mode Switch | Long Press Right Button to switch among DAY/CLOUDY/Night/LED |
| Input Voltage | 4.5V~20V |
| Language | ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 50mA±15% @ DC12V 115mA±15% @ DC5V |

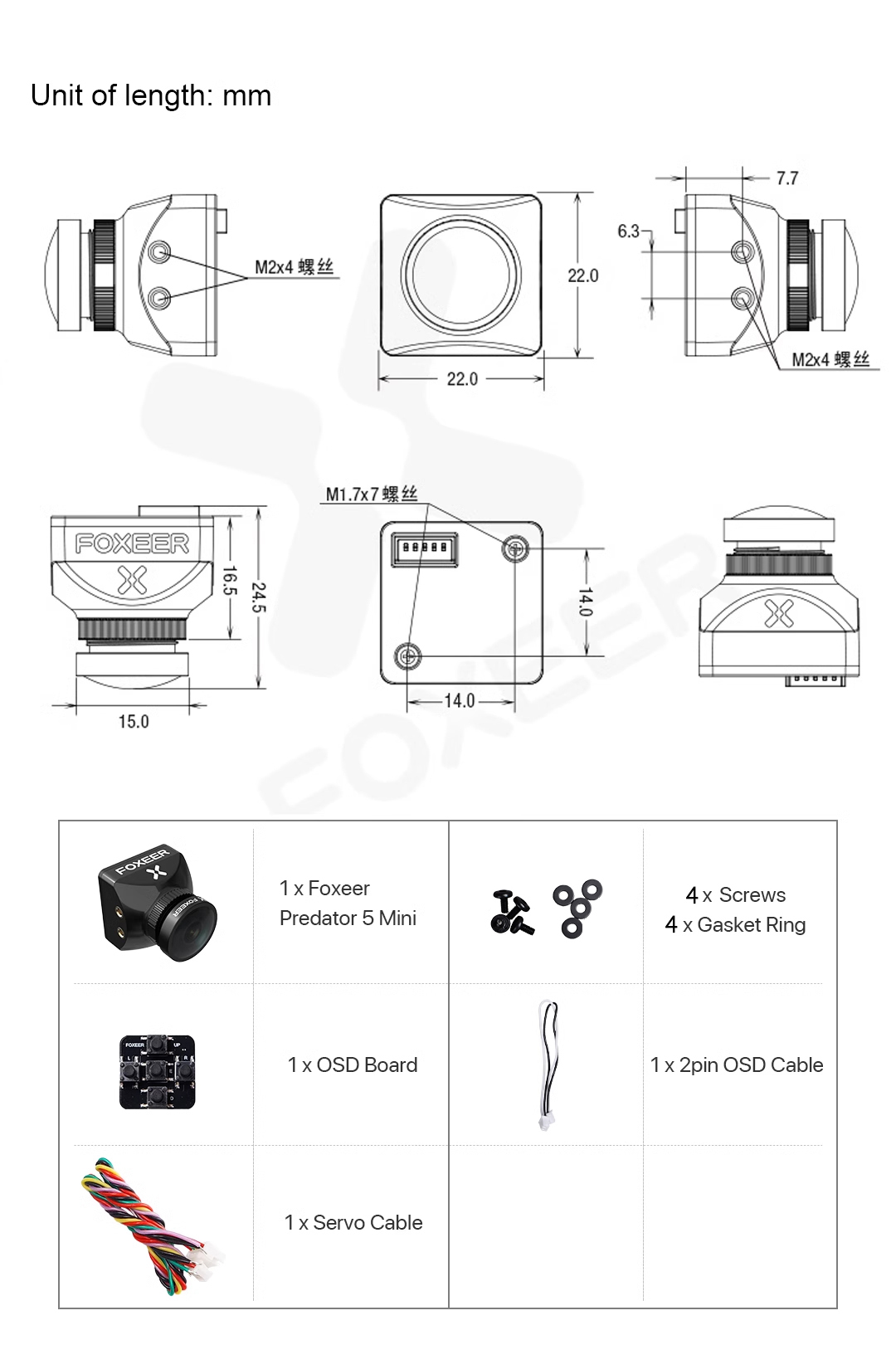

| Dimension | 22*22mm |
| Weight | 12g(Exclude cable) |
